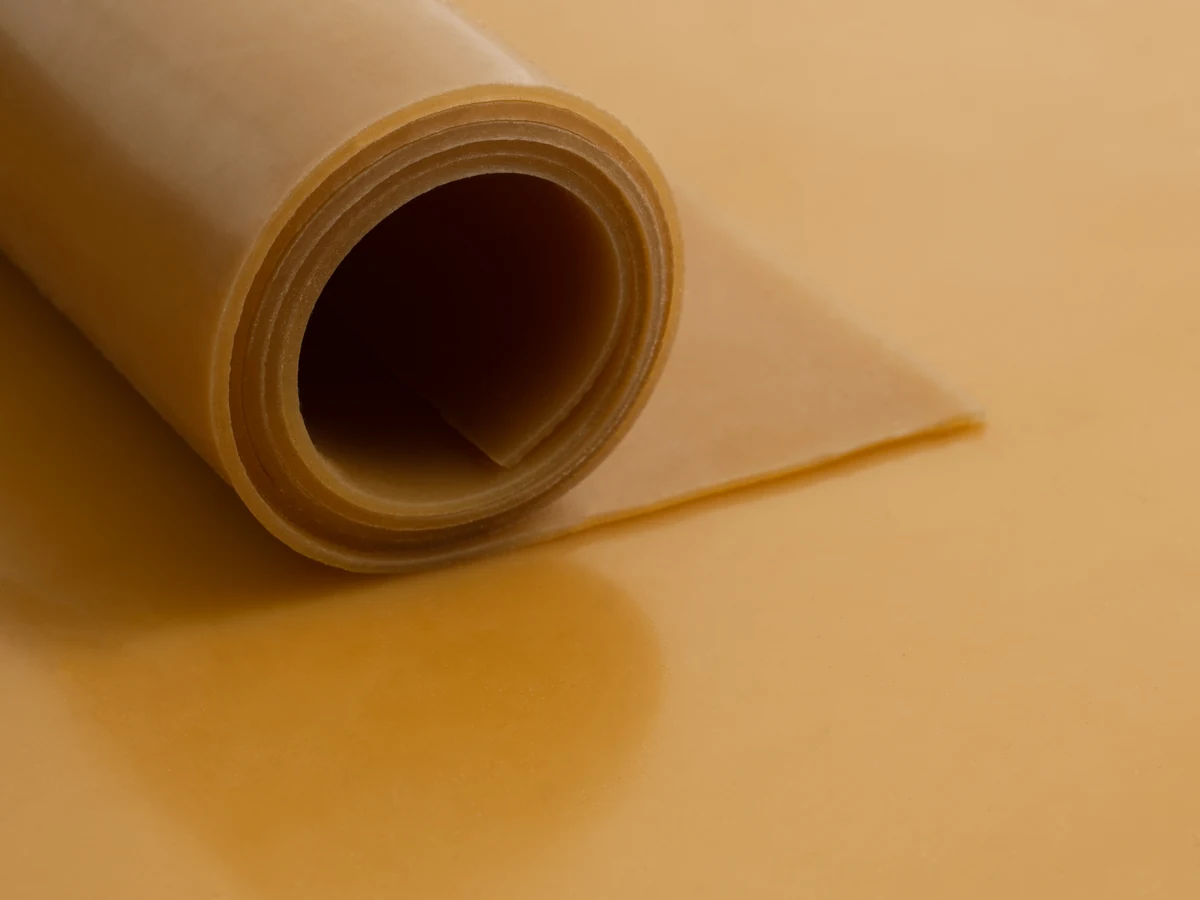

RT-NR35-HN
Anti-abrasion, highly elastic · honey · 35 Sh A
High abrasion
- Hardness
- 35 Sh A
- Colour
- honey
- Service temperature
- −40 to +70 °C
- Thickness
- 1–10 mm · 8 thicknesses
- Roll
- 1400 mm × 20 m
- 1
- 2
- 3
- 4
- 5
- 6
- 8
- 10
Natural rubber (NR)
Natural rubber offers outstanding elasticity, tear strength and abrasion resistance. It is ideal for anti-vibration and impact parts in dry environments, but not suited to oils or prolonged sunlight.
Typical applications
Anti-vibration rubber padsRubber sheets cut to sizeRubber chemical resistance chart

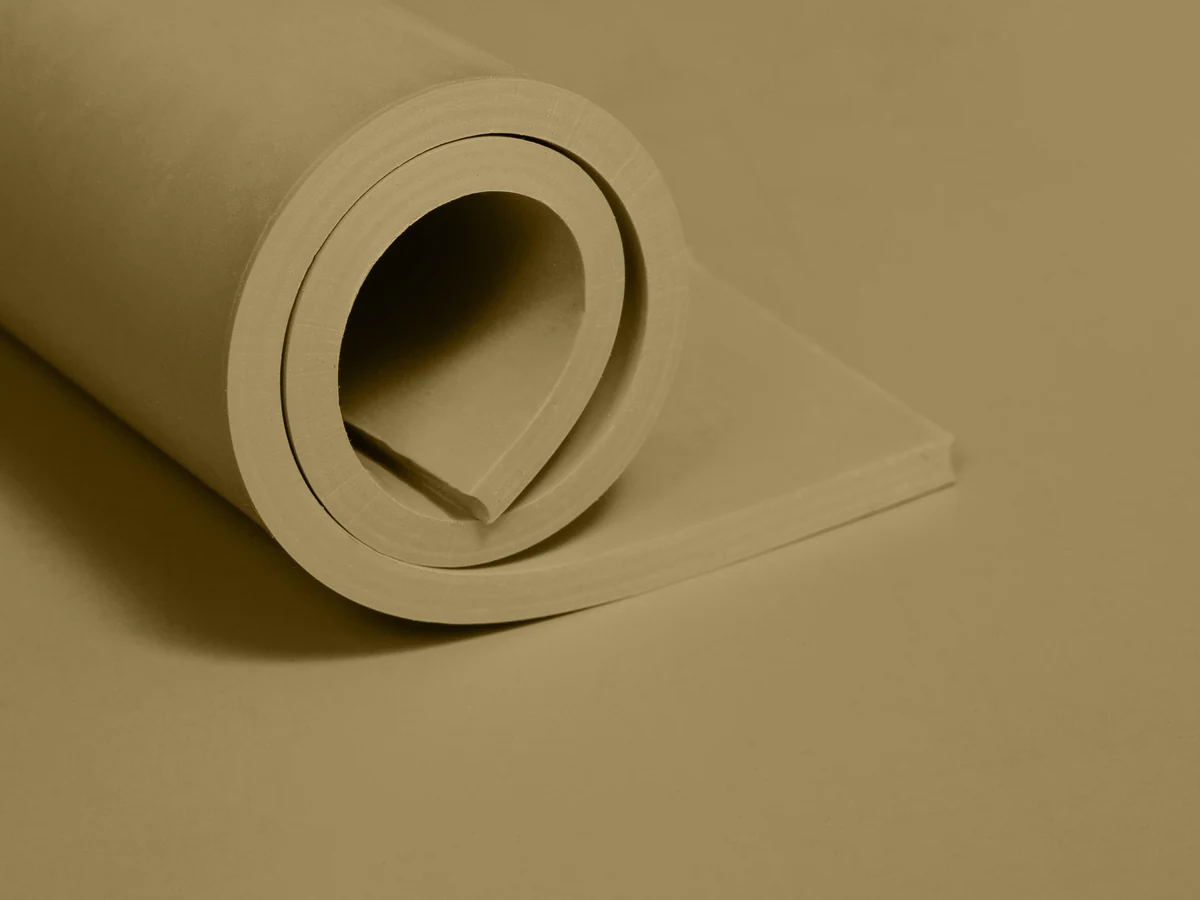

RT-NR45-BE
Anti-abrasion · beige · 45 Sh A
High abrasion
- Hardness
- 45 Sh A
- Colour
- beige
- Service temperature
- −30 to +70 °C
- Thickness
- 1–20 mm · 12 thicknesses
- Roll
- 1400 mm × 20 m
- 1
- 1.5
- 2
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 15
- 20

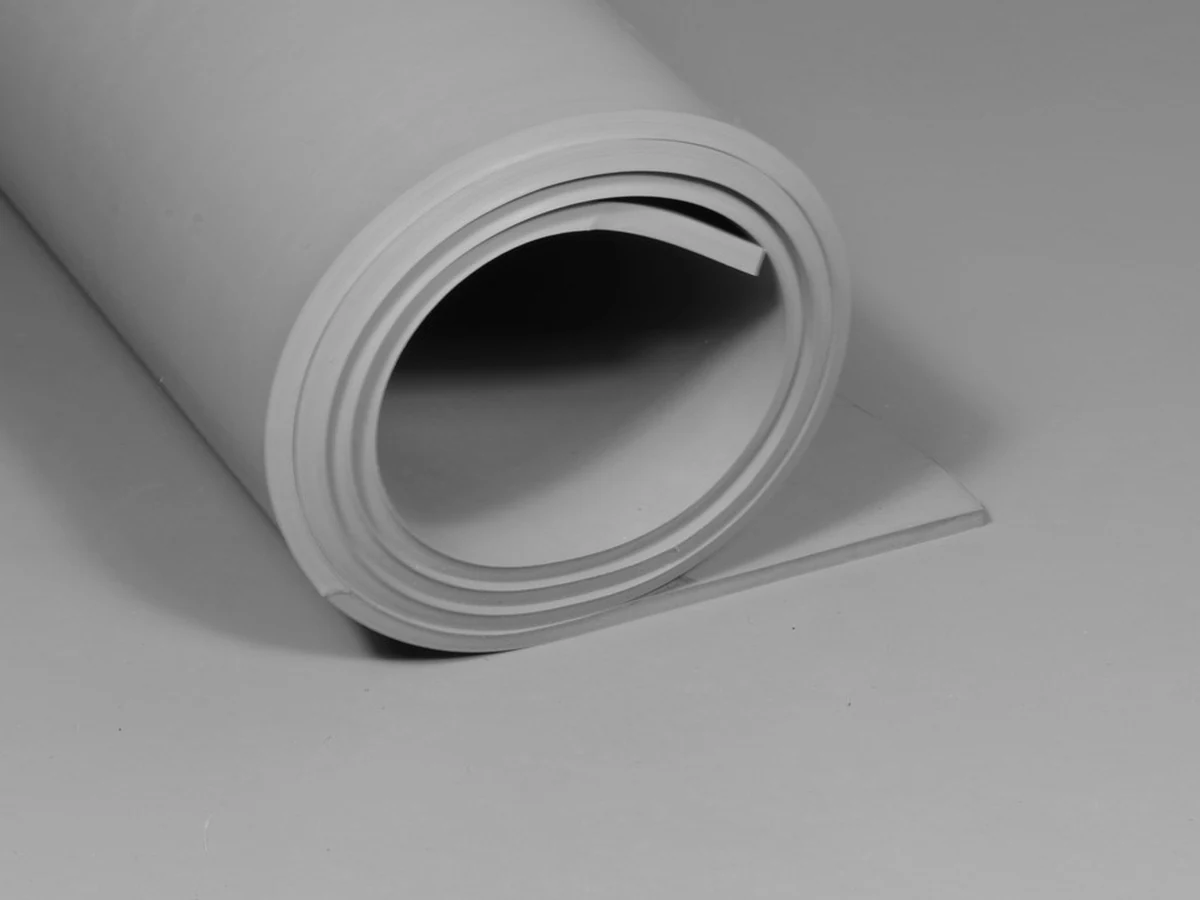

RT-NR45-GY
Anti-abrasion · grey · 45 Sh A
High abrasion
- Hardness
- 45 Sh A
- Colour
- grey
- Service temperature
- −30 to +70 °C
- Thickness
- 1.5–10 mm · 8 thicknesses
- Roll
- 1400 mm × 15 m
- 1.5
- 2
- 3
- 4
- 5
- 6
- 8
- 10

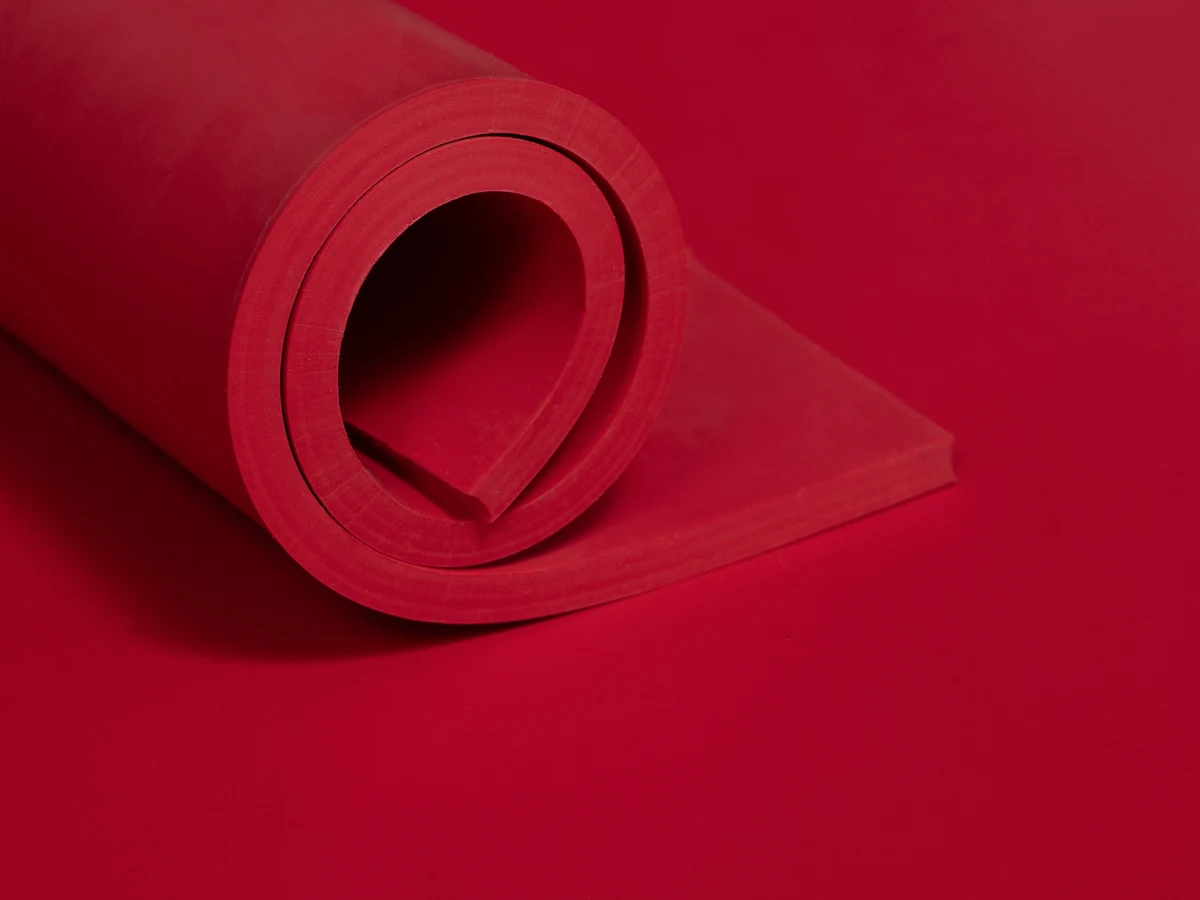

RT-NR45-RD
Anti-abrasion · red · 45 Sh A
High abrasion
- Hardness
- 45 Sh A
- Colour
- red
- Service temperature
- −30 to +70 °C
- Thickness
- 1–25 mm · 13 thicknesses
- Roll
- 1400 mm × 20 m
- 1
- 1.5
- 2
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 15
- 20
- 25

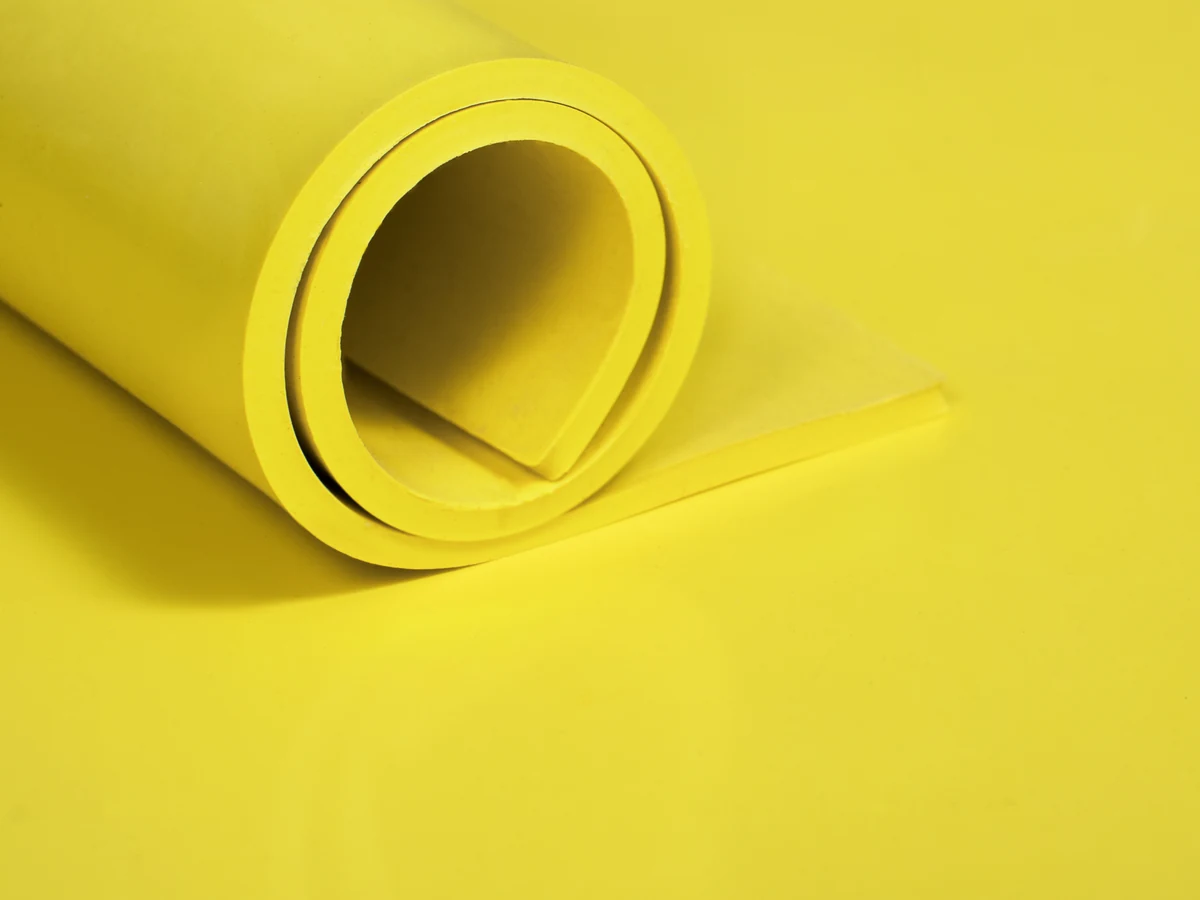

RT-NR45-YE
Anti-abrasion · yellow · 45 Sh A
High abrasion
- Hardness
- 45 Sh A
- Colour
- yellow
- Service temperature
- −30 to +70 °C
- Thickness
- 3–20 mm · 8 thicknesses
- Roll
- 1500 mm × 10 m
- 3
- 4
- 5
- 6
- 8
- 10
- 15
- 20

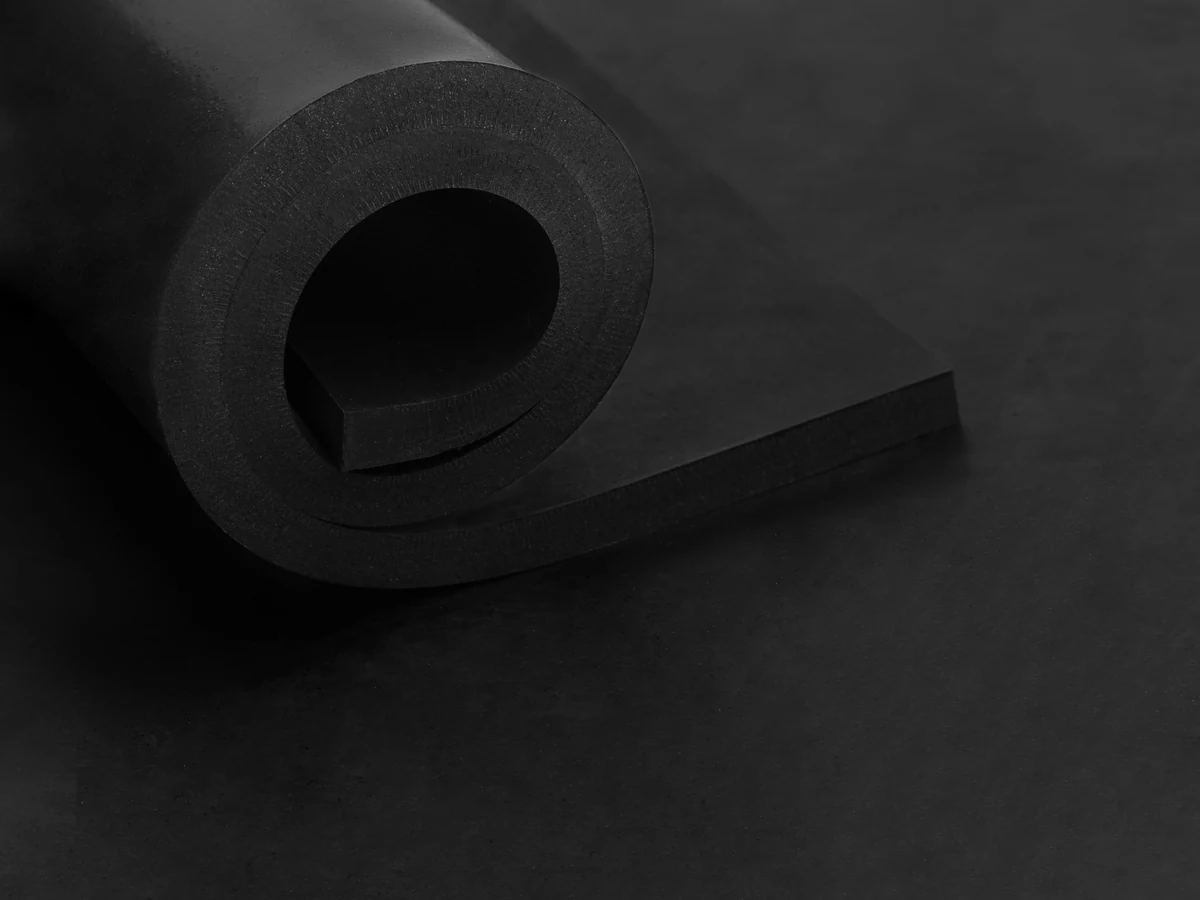

RT-NR40-BK
Anti-abrasion · black · 40 Sh A
High abrasion
- Hardness
- 40 Sh A
- Colour
- black
- Service temperature
- −30 to +70 °C
- Thickness
- 4–20 mm · 7 thicknesses
- Roll
- 1400 mm × 20 m
- 4
- 5
- 6
- 8
- 10
- 15
- 20
RT-NR60-BK
Anti-abrasion · black · 60 Sh A
High abrasion
- Hardness
- 60 Sh A
- Colour
- black
- Service temperature
- −30 to +70 °C
- Thickness
- 2–50 mm · 14 thicknesses
- Roll
- 2000 mm × 10 m
- 2
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 15
- 20
- 25
- 30
- 40
- 50
RT-NR38-RD
Anti-abrasion, highly elastic · red · 38 Sh A
High abrasion
- Hardness
- 38 Sh A
- Colour
- red
- Service temperature
- −40 to +75 °C
- Thickness
- 1.5–20 mm · 10 thicknesses
- Roll
- 1400 mm × 10 m
- 1.5
- 2
- 3
- 4
- 5
- 6
- 8
- 10
- 15
- 20

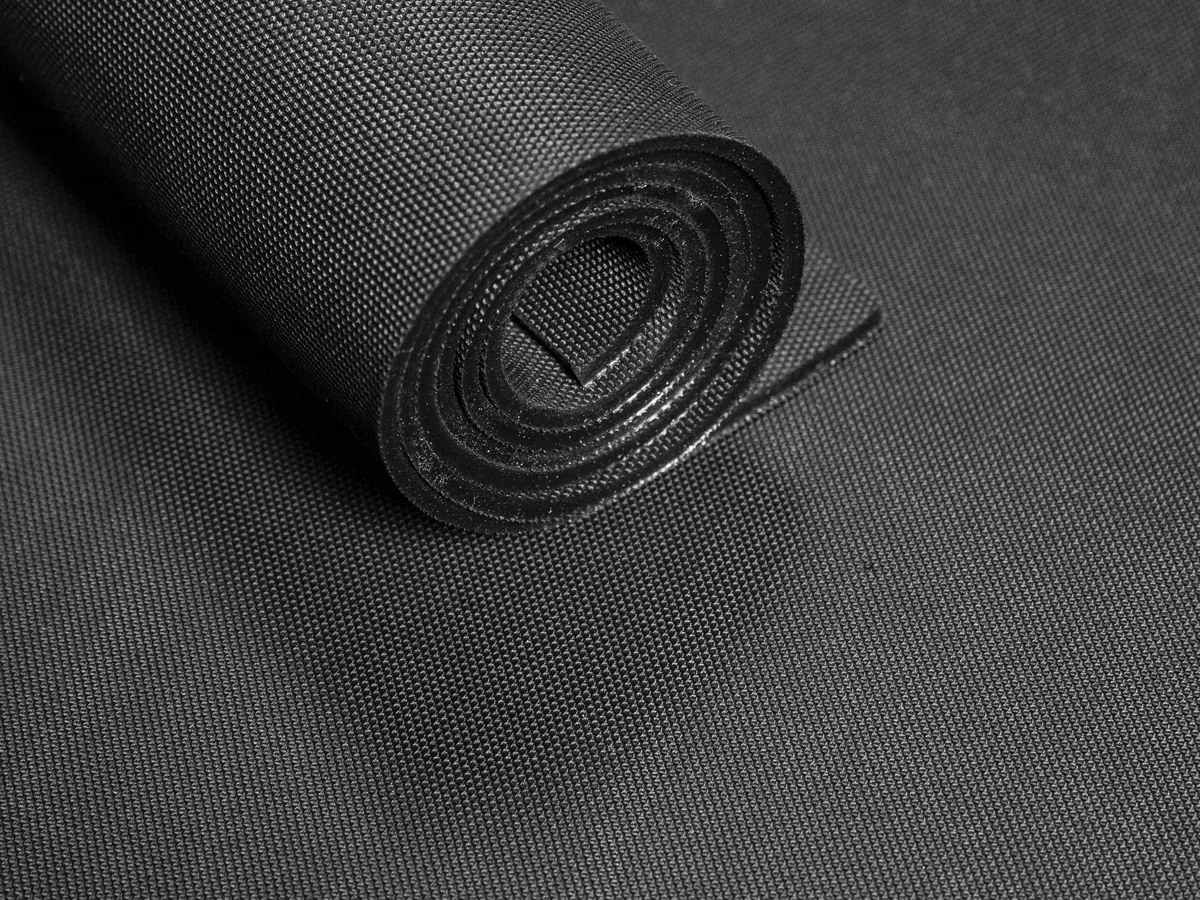

RT-NR40-BK-DS
Dust sealing · black · 40 Sh A
High abrasion
- Hardness
- 40 Sh A
- Colour
- black
- Service temperature
- −25 to +70 °C
- Thickness
- 2–3 mm · 2 thicknesses
- Roll
- 1400 mm × 20 m
- 2
- 3
No reference matches this filter.
How to read our references
Every reference says what the material is: type, hardness, colour and options. Two references that look alike always differ in at least one of these parts.
- NR
- material or kind of product (NR = natural rubber, EPDM, NBR, SIL = silicone, MAT = matting, LAG = pulley lagging…)
- 45
- hardness in Shore A
- RD
- colour (BK black, RD red, YE yellow, OG orange, BU blue, WH white, GY grey…)
- BL
- options: BL bonding layer for cold bonding, FB fabric-reinforced, E economy, P premium, FG food grade…
BL (bonding layer): the back of the sheet carries a bonding layer, ready to be glued cold to steel or rubber — the usual choice for linings, chutes and pulley lagging. Without BL, the sheet is used loose, bolted or glued with a primer.
All material families
Not sure which rubber to choose?
Tell us the application (temperature, fluids, contact, environment) and we will recommend a material.
